ECOTANK+ 1.2 / 2.5
Centrifugal tank pump for the removal of condensates from air conditioners,
regrigerated displays or gas condensing boilers.
UNBOXING VIDEO
BENEFITS
High efficiency
Flowrate max: 800 l/h
Discharge head max: 5.6 m
IP24 protection
The pump is protected against water splashes.
Universal electric plug
Power/alarm cable can be taken off, making easy installation and maintenance..
Outlet for 6/9 or 9/12 mm tube
Thanks to its connector supplied, the discharge can be made with a 6/9mm or a 9/12mm tube.
High capacity tank
Thanks to its 2.5 l tank, the ECOTANK+ 2.5 reduces the number of pumping cycles and answers to a great deal of applications.
Compact tank pump
With only 129mm height, the ECOTANK+ 1.2 fits easily in any space.
Reversible tank
Turning the tank allows to fit in any configuration
SPECIFICATIONS
| 50 Hz version | 60 Hz version | |
|---|---|---|
| Flowrate max | 800 l/h | 800 l/h |
| Discharge head | 5.6 m | 6 m |
| pH tolerated | pH > 2.5 | pH > 2.5 |
| Condensates max temp. | 60°C | 60°C |
| Electrical power | 65W | 65W |
| Voltage | 230V 50Hz | 230V 60Hz |
| Alarm | NO-NC | NO-NC |
| Noise level* |  | |
| Protection rating | IP24 | IP24 |
| Thermal protection | YES | YES |
| Operating cycle** | 30% | 30% |
| Cable lenght | 1.5 m | 1.5 m |
| Dimensions ECOTANK | 280 x 130 x 129 mm | 280 x 130 x 159 mm |
* Notation from 1 wave (≤ 20 dBA) to 6 waves (> 45 dBA)
** The pump is able to run 30% of the time if necessary.
CONTENT
Pump – Cable power / alarm – 6/9mm outlet adaptor – Screws and rawlplugs – PVC clear tube 6m (only in 60Hz version).

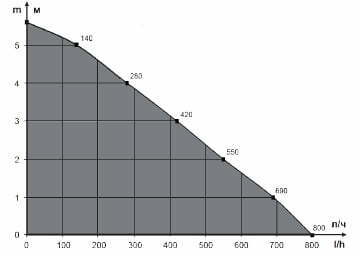

FLOWRATE
